Static Malware Analysis

About

This project involves static malware analysis in a sandboxed environment. I will analyze a Windows executable using tools such as PE-bear¹, DiE², floss³, PEstudio⁴, capa⁵, and other appropriate tools to properly assess this executable as malware. Elements like hashes, strings, architecture, encoding, obfuscation, packing, entropy, and API imports will all be examined.

Analyzing the executable

Loading the malware safely into the Lab VM

---

The first initial step was to load the malware safely into the Isolated VM. Since the machine is fully sandboxed, loading was done by burning the malware into an ISO file and manually loading it into the VM.

Malware Analysis

---

PE-Bear

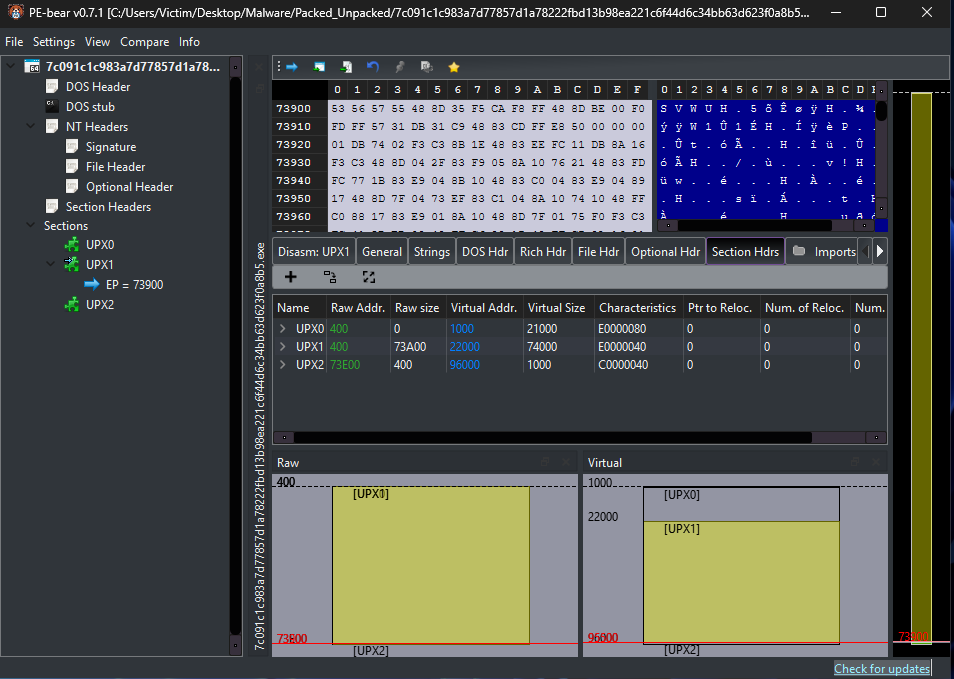

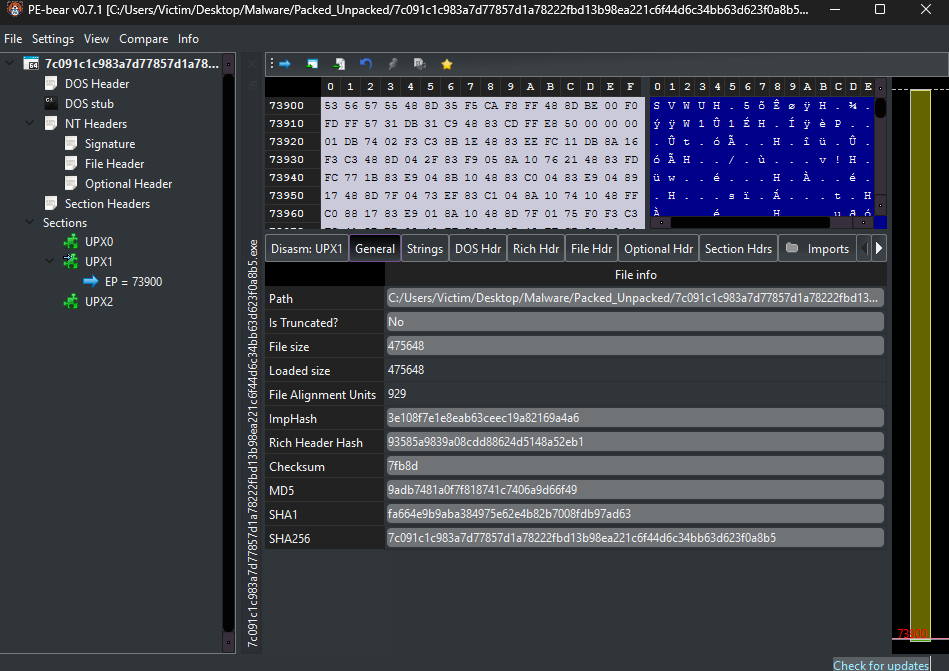

First, the malware was loaded into PE-bear for gathering general information, including structure of sections, file size vs. loaded size, hashes which will be used with VirusTotal later on, and UPX⁶ sections (UPX0, UPX1, UPX2), which can be an indicator that this malware was packed using UPX.

MD5: 9adb7481a0f7f818741c7406a9d66f49

---

VirusTotal

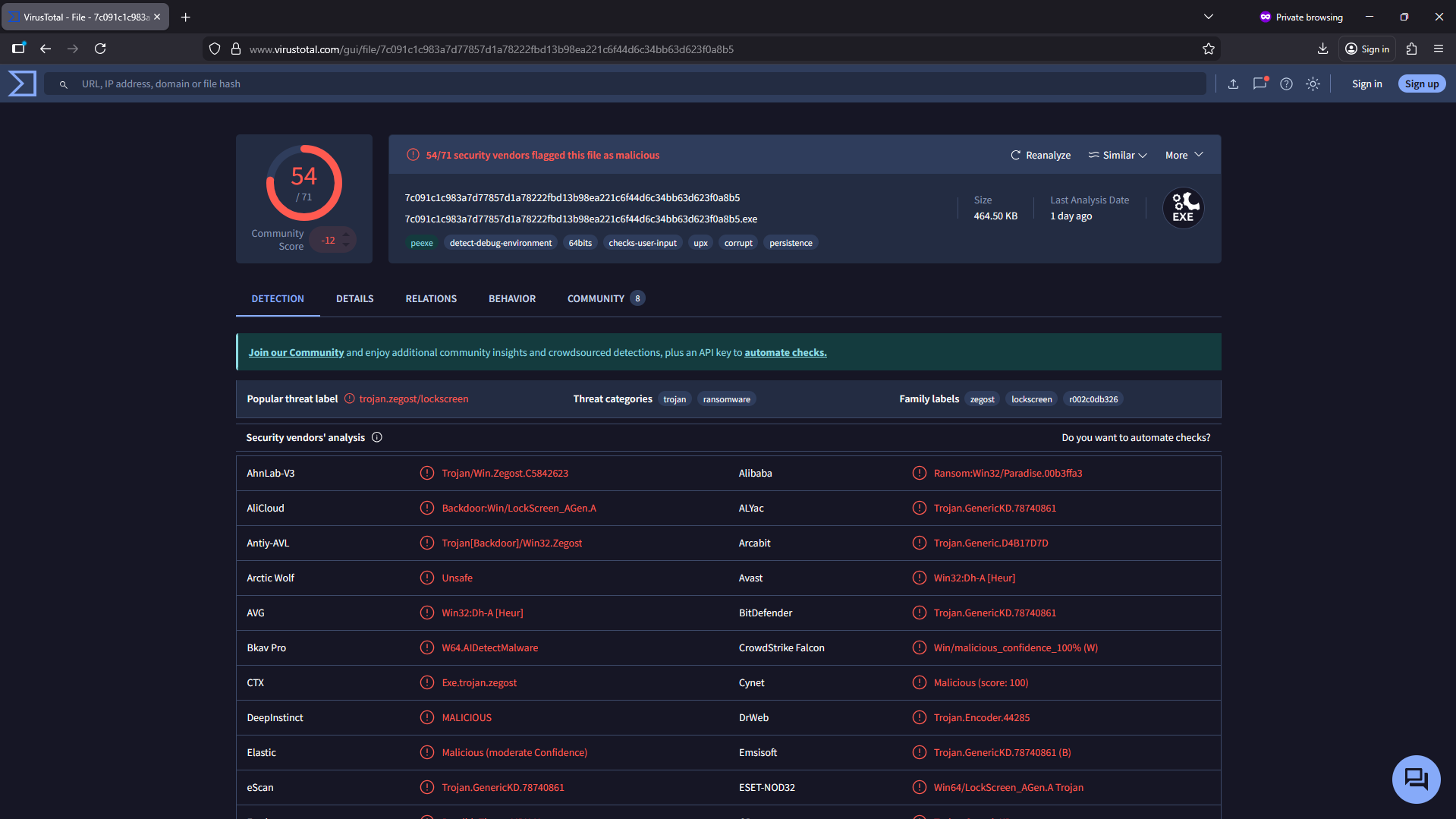

Taking one of the hashes, in this case the MD5, I checked for any suspicious flagging. And it came back with flagging 54/71, as seen here, this executable has some interesting alerts. The last analysis provided by Virustotal was conducted 1 day ago, so it remains very relevant.

---

Detect it Easy (DiE)

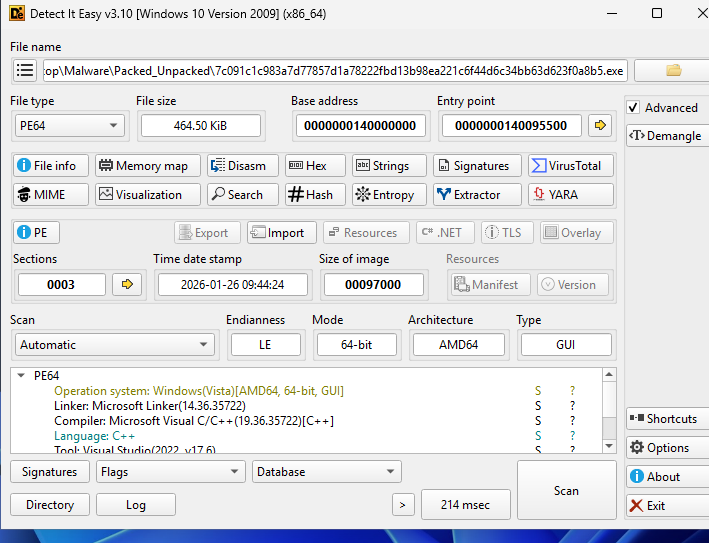

When taking a look at the malware with DiE, we can notice the OS this malware was made for: Windows(Vista)[AMD64, 64-bit, GUI]. We can see it was made for Vista; the reason behind it could be to support backwards compatibility and function from any Windows version from Vista onward. We can also see the architecture and that it is a GUI program. Among other things, we can also see the language that it was coded in, in this case C++, and the compiler used.

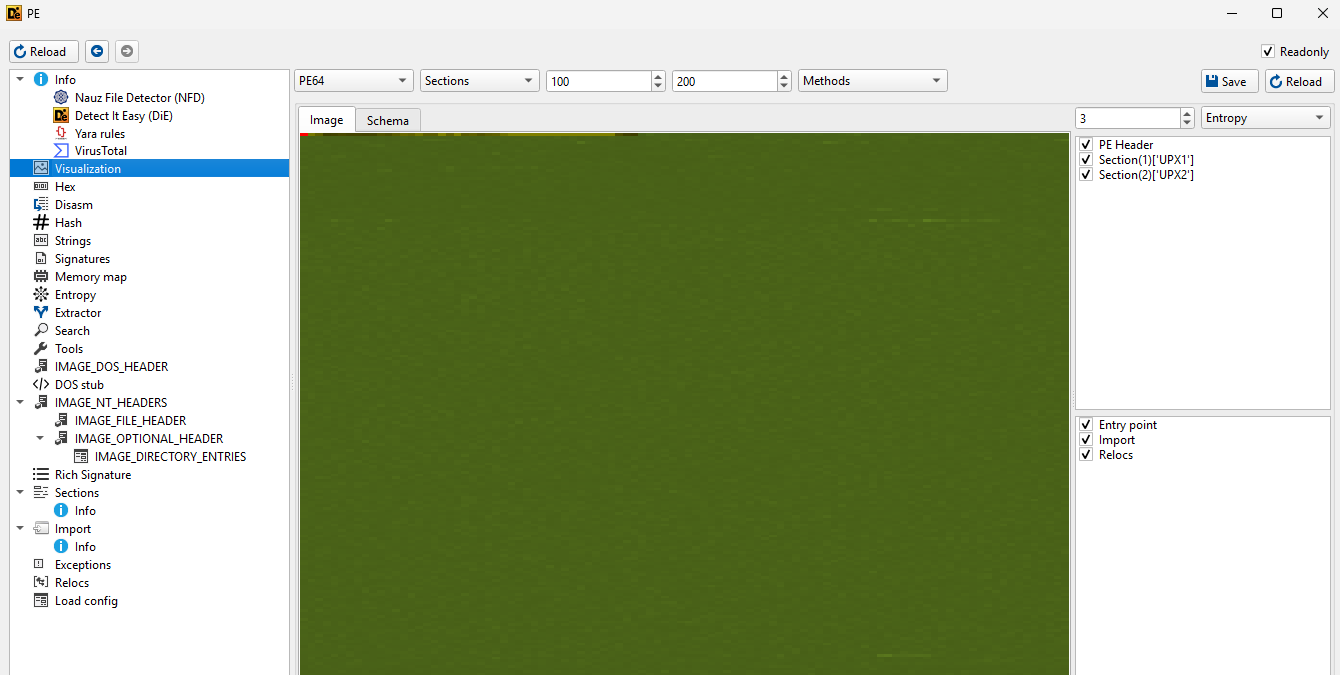

Here, I have tested for any graphical visualization, but even after tampering with the sections, nothing was shown.

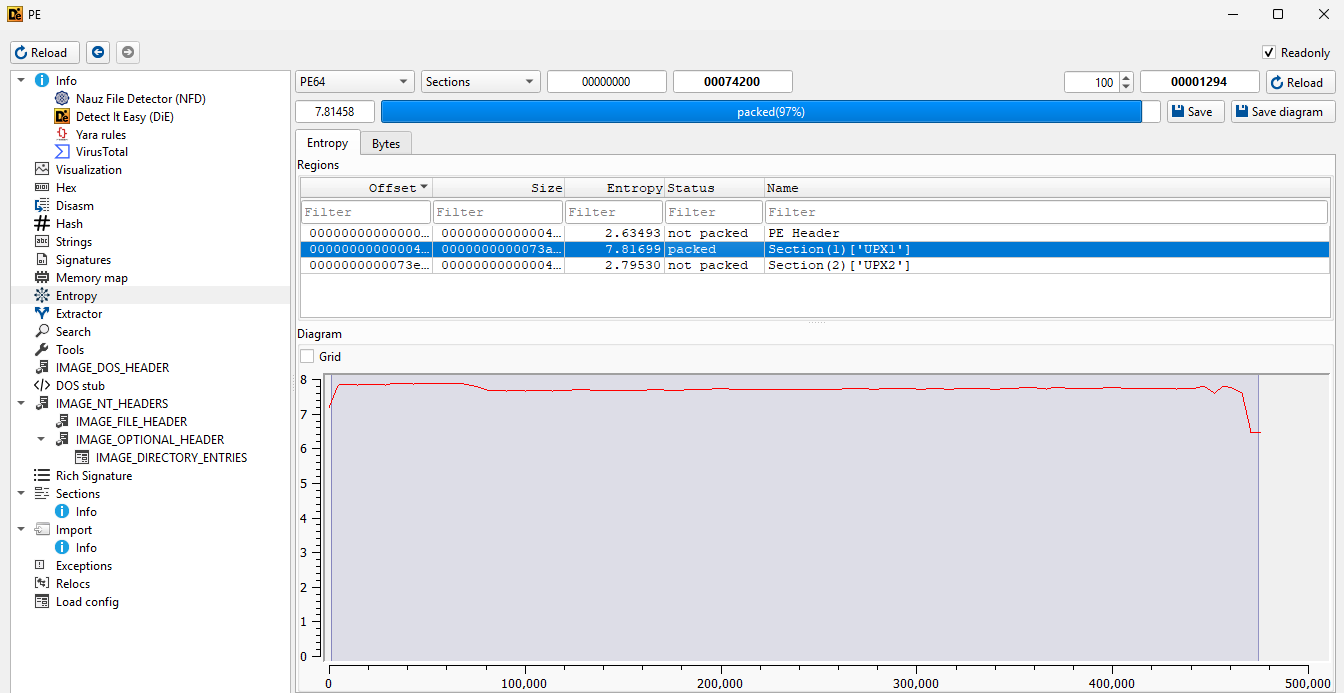

Moving onto Entropy, we can see that one section (Section(1)) shows a high average entropy level of 7.81699, which is an indicator that this part of the program has been packed and will unpack and run after the program is initiated. This is also supported by the 97% confidence provided by DiE that this section is indeed packed.

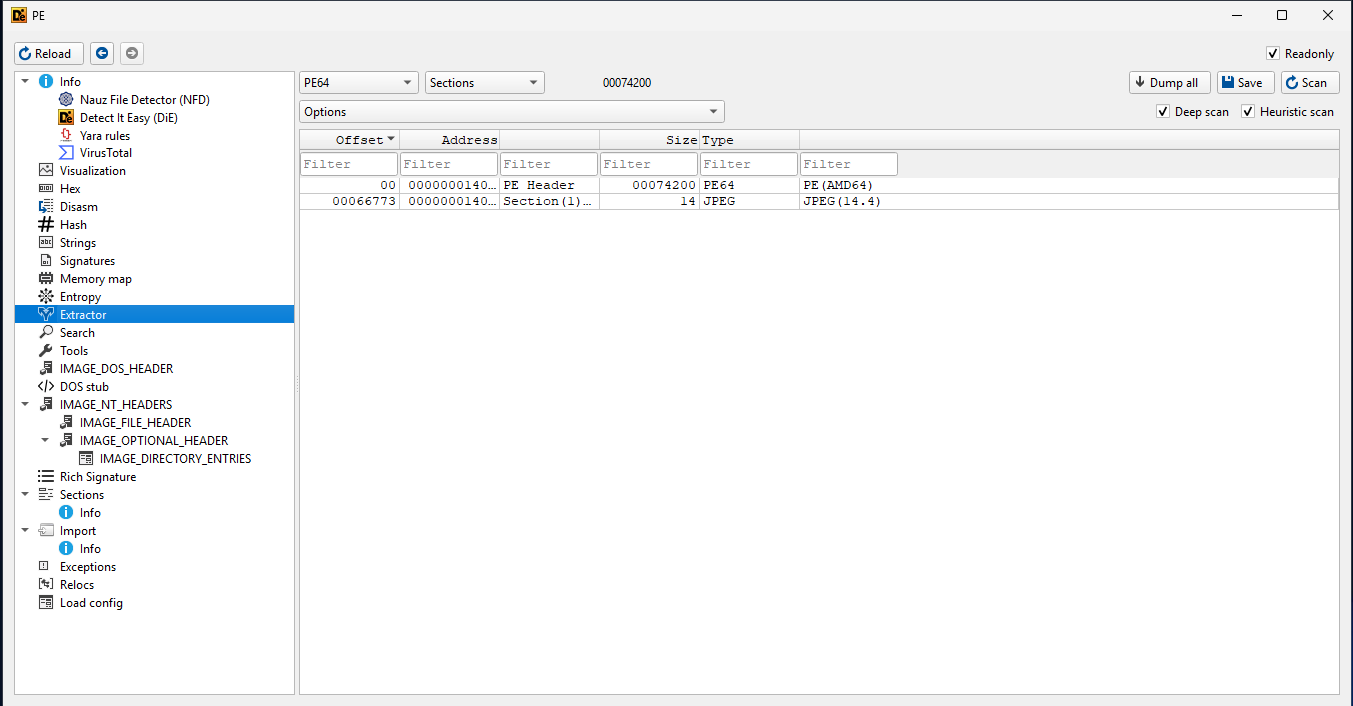

While here, I have chosen the extractor where we can further see the content and what parts this program is made of. One important thing to note here is that the Section(1) that I also encountered earlier seems to include a JPEG (this will later be confirmed after running the malware) that can potentially be used as a lockscreen when the program runs.

---

floss

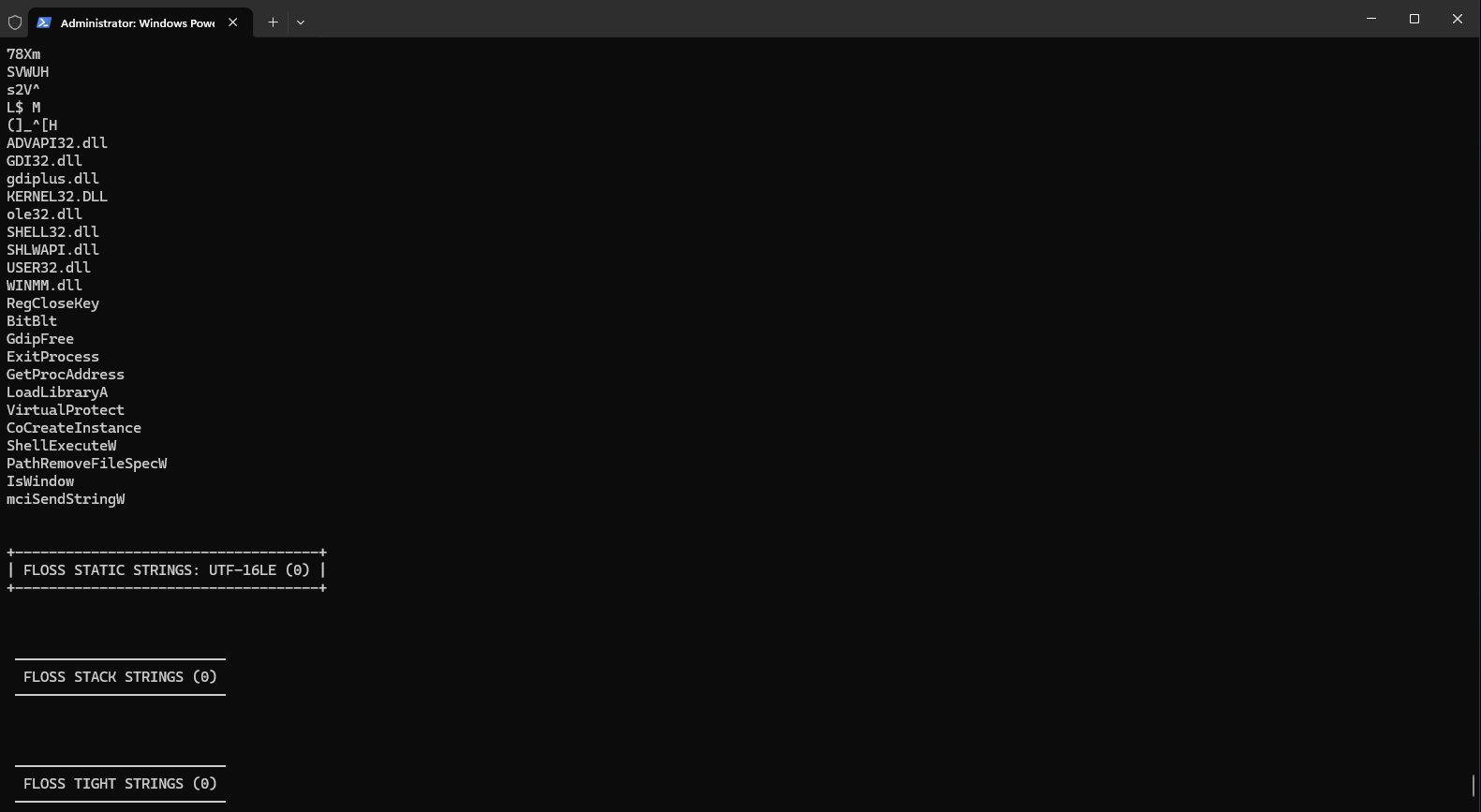

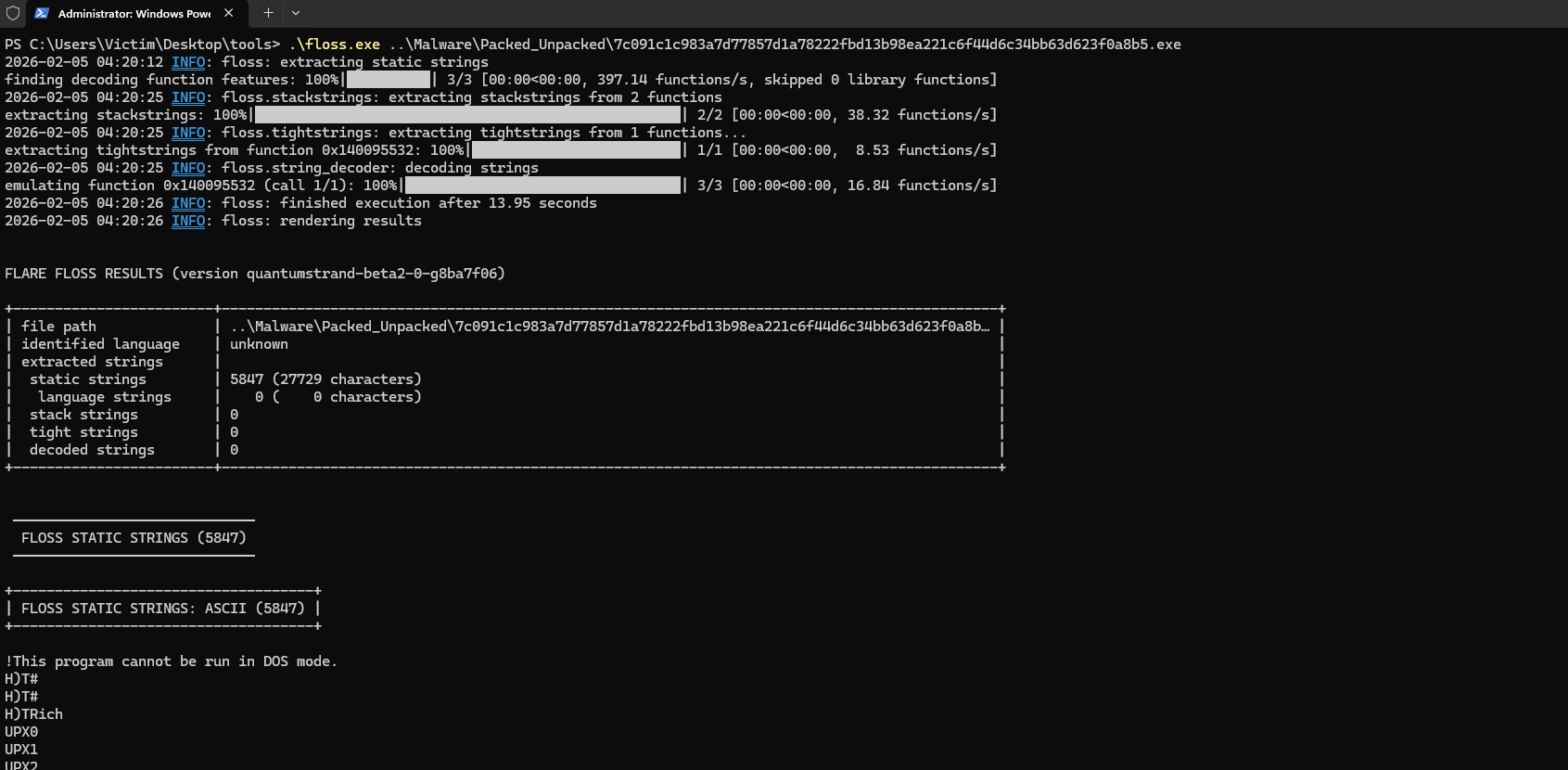

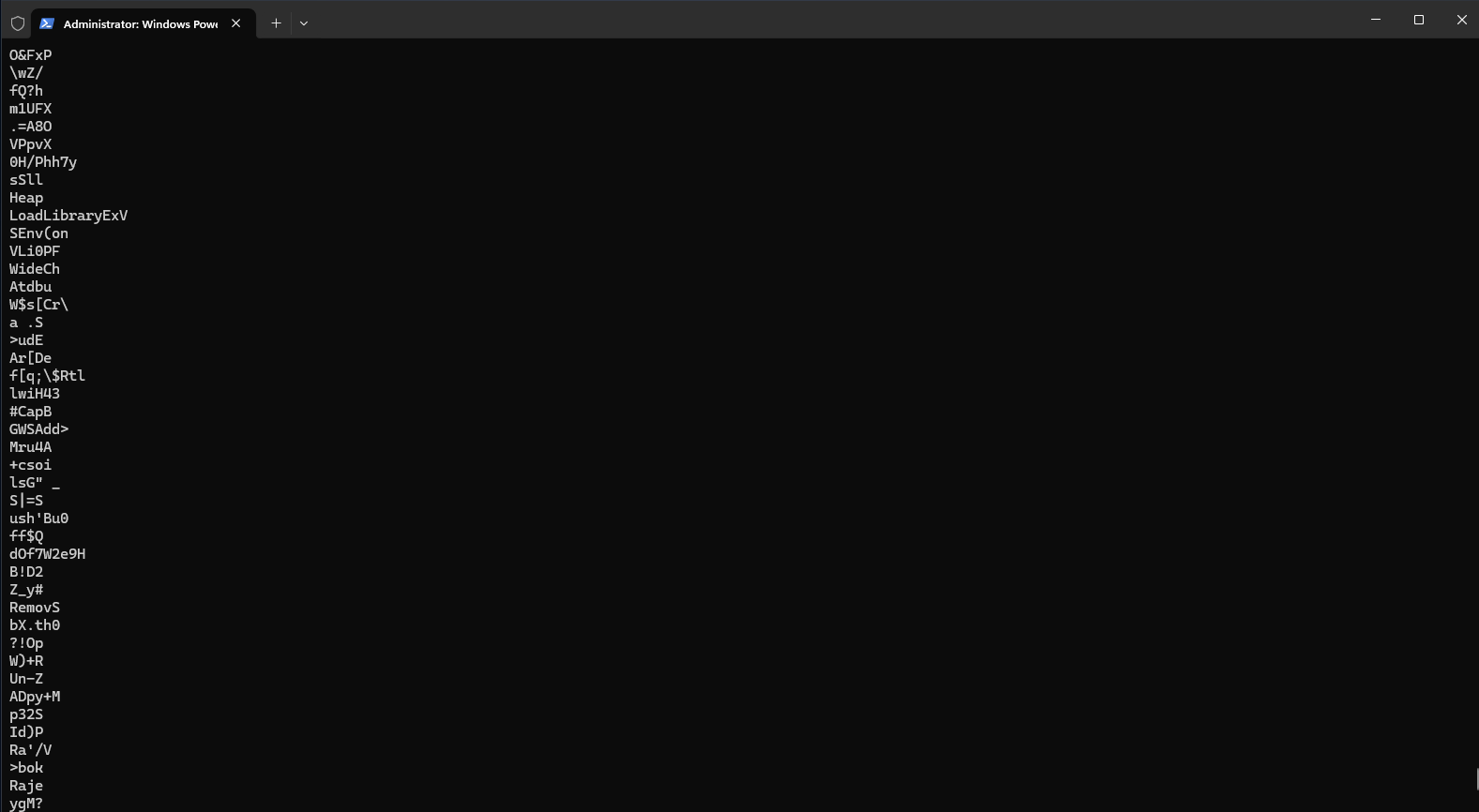

floss was used to run an analysis on the strings of the malware in search of any suspicious strings. As seen below, most of the strings are gibberish, but when approaching the end of the floss analysis, we can see some interesting strings such as LoadLibraryExV, VirtualProtect (used to change memory permissions), ShellExecuteW (executes commands via the shell), ADVAPI32.dll (a DLL that can be used to access the registry).

floss can be used in combination with grep to make looking for suspicious strings more efficient. More API imports will be analyzed in more detail further down.

---

PeStudio

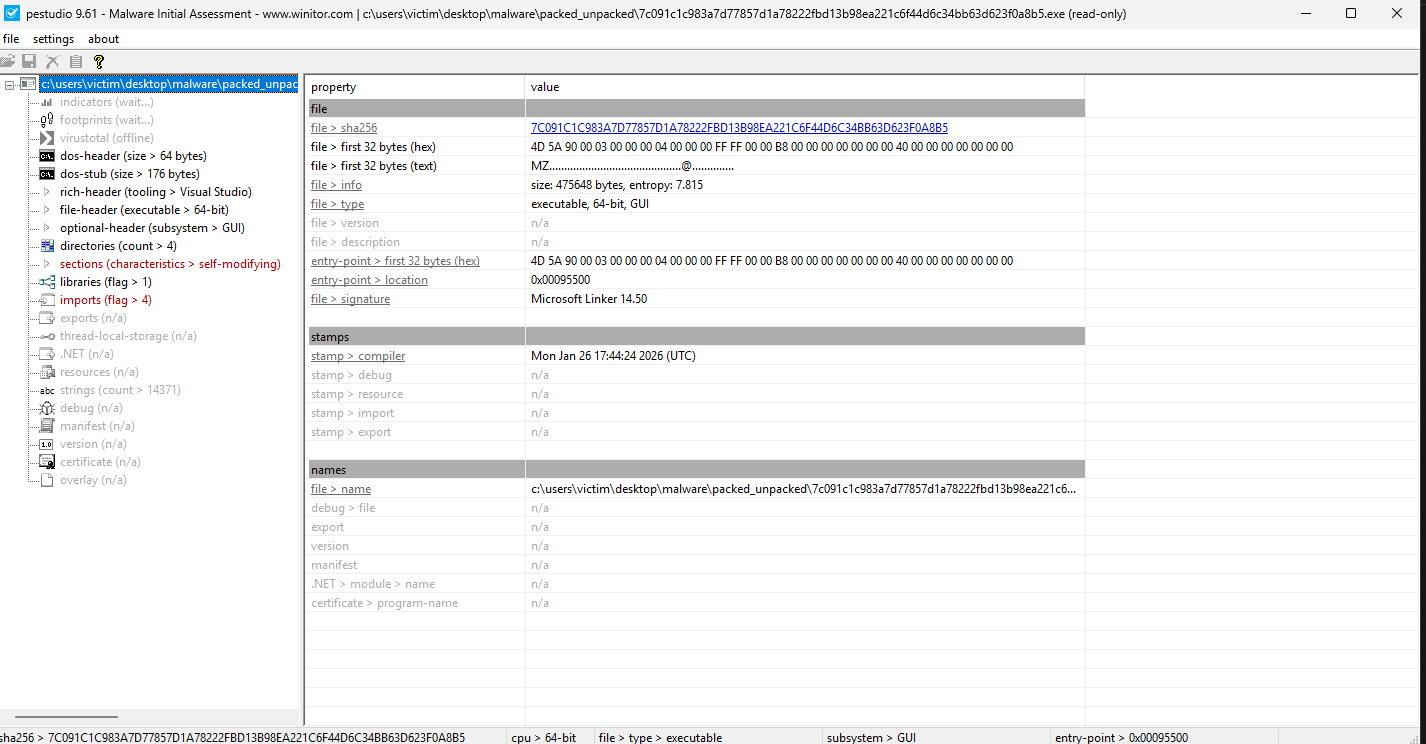

Taking a first look at PeStudio, we can see some general information that we’ve also seen before, and we can further confirm things like the hashes, architecture, the interface (GUI), the entropy, and in this case, we can also see a signature.

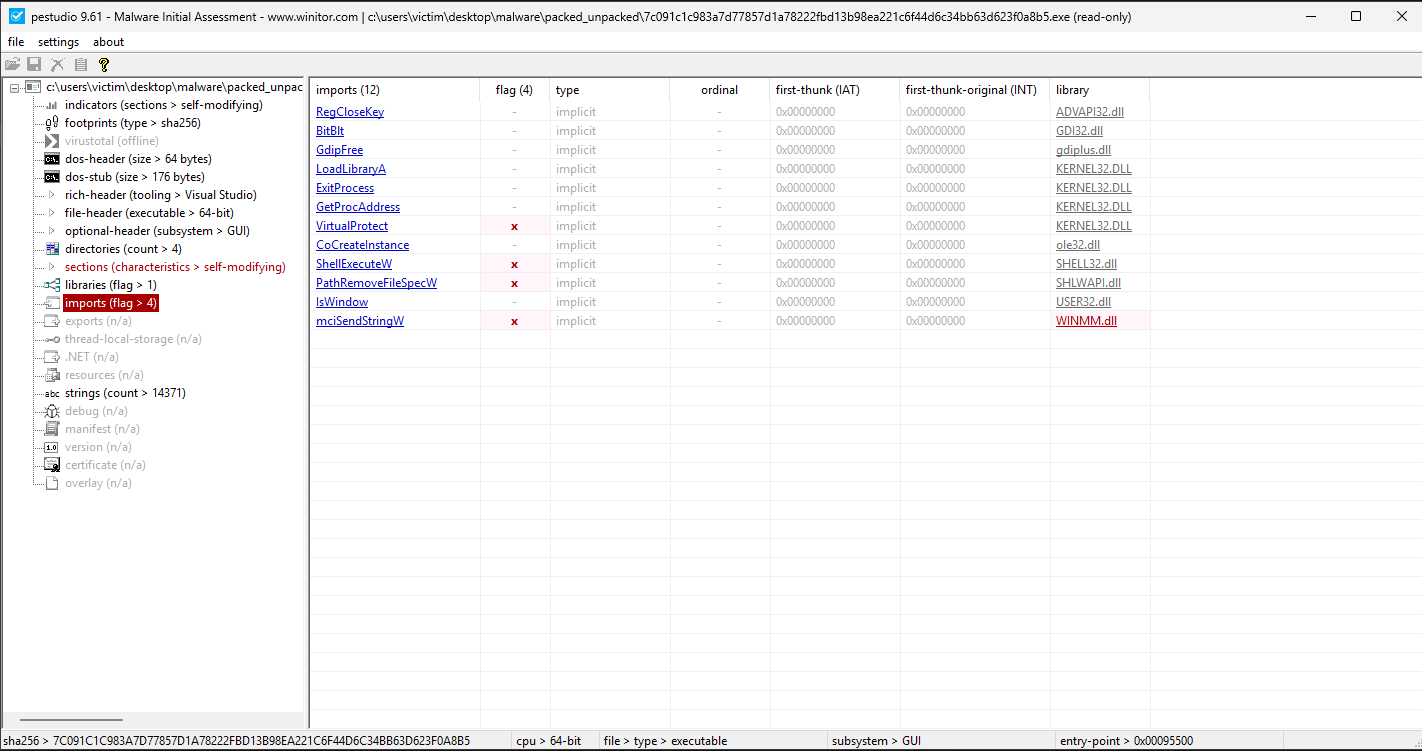

One of the most important things to take a look at with PeStudio is the API imports. As seen below, 4 of these imports are already flagged as suspicious. In combination with https://malapi.io, we can take a further look at what each call does and how they are relevant to finding out what this program aims to do.

VirtualProtect⁷

ShellExecuteW⁸

GetProcAddress⁹

BitBlt¹⁰

---

capa

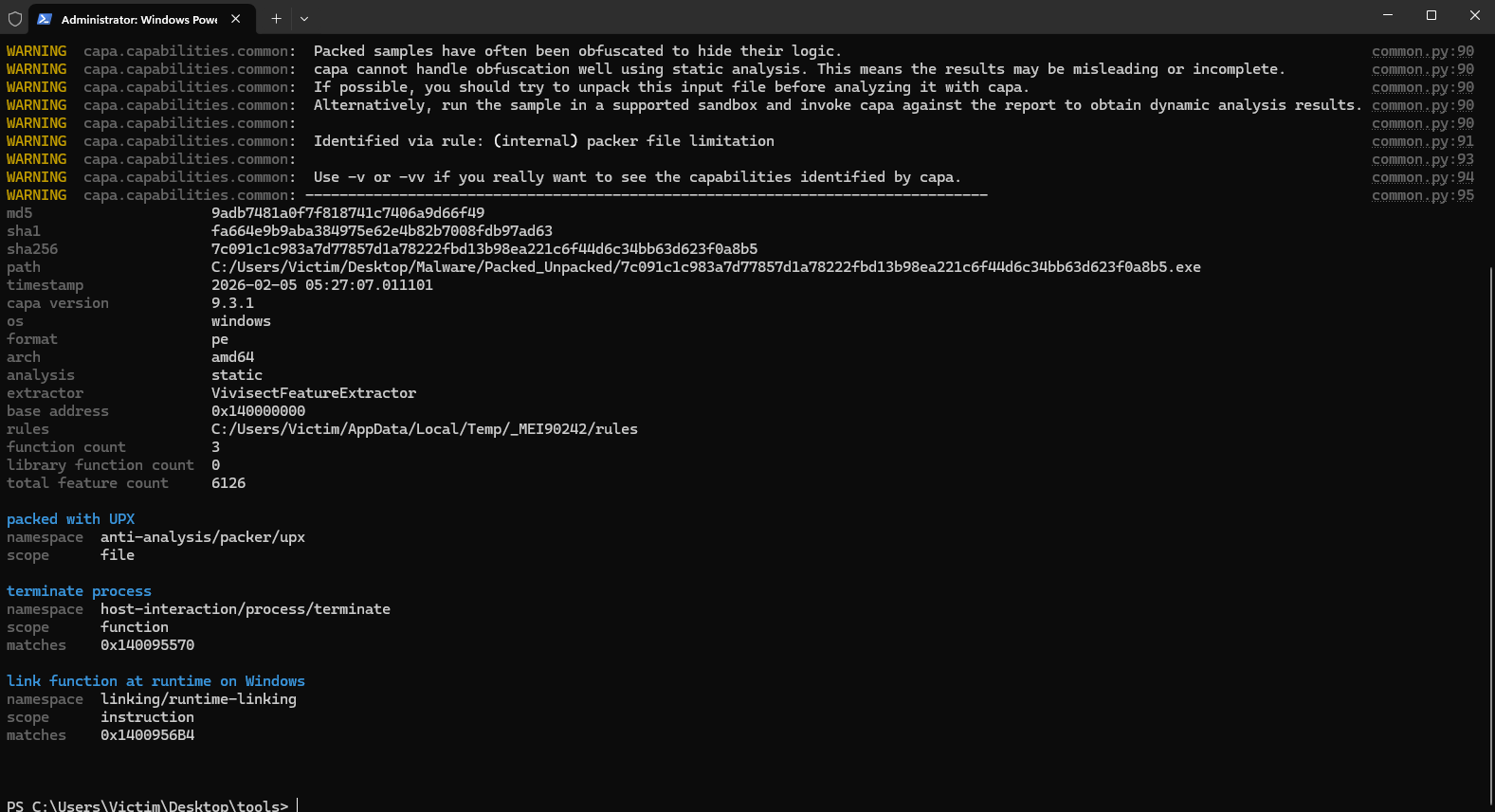

After running capa from the terminal, we can take a look at the information provided by it, confirming once more the hashes, along with other previously mentioned information. One important thing to note here is that capa confirms that this file was packed using UPX, just like we also had indicators before.

---

Executing the Malware!

After doing the most out of the Static Malware analysis, the next step before moving onto Dynamic Analysis was to run the malware. This execution is done in the isolated ENV, and the VM has a clean snapshot we can later revert to after the malware takes it’s effect on the system, thus making it a completly safe and no fall back process.

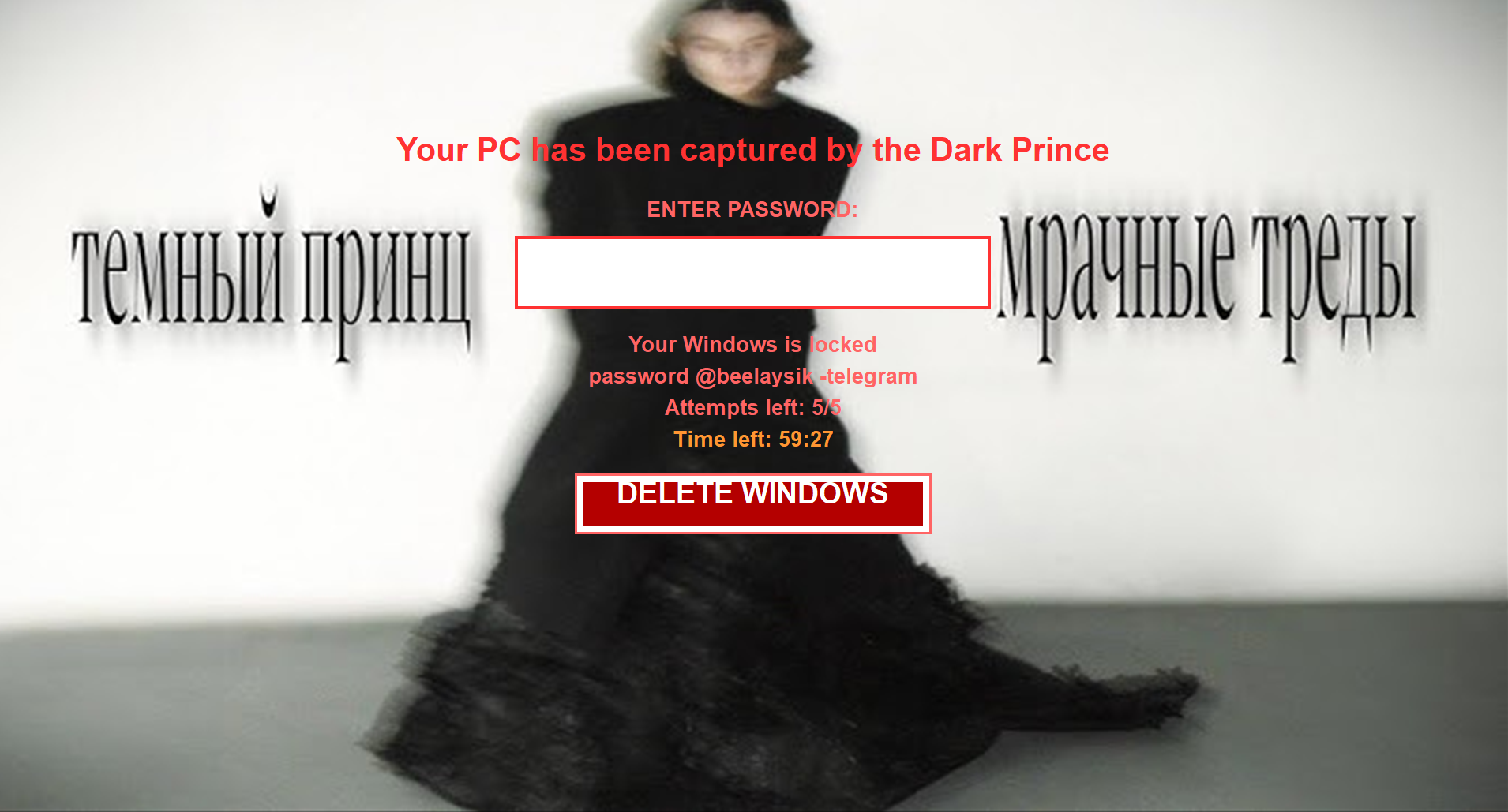

The pop up that showed after the execution is this, confirming that this malware indeed does lock your system in this lock screen, and you are required to pay to unlock it, or your system will be delted within the given time.

---

Conclusion

This project covers the basics of static malware analysis, with the aim to further understanding of how malware of this type works, executes, how to detect and prevent it, all in a reverse engineering fashion.

---

MITRE ATT&CK Mapping

MITRE ATT&CK Mapping

Sample: Static Malware Sample

Tactic	Technique	ATT&CK ID	Evidence from Analysis
Defense Evasion	Obfuscated Files or Information: Software Packing	T1027.002	UPX0/UPX1/UPX2 sections, high entropy, and capa output indicate packed content.
Defense Evasion	Obfuscated Files or Information: Dynamic API Resolution	T1027.007	GetProcAddress usage supports runtime API lookup to reduce obvious static signatures.
Collection	Screen Capture	T1113	BitBlt import is consistent with screenshot/screen-grab capability.
Execution	Native API	T1106	Imported APIs such as VirtualProtect and ShellExecuteW indicate direct WinAPI-driven execution behavior.
